Reliable Efficient Pcb Handling System Rejection System Conveyor High Precision

Brand Name : HXT

Model Number : 1M

Certification : CE

Place of Origin : China

MOQ : 1

Price : 380

Payment Terms : T/T

Supply Ability : The production capacity is 100 units a month

Delivery Time : 3-15

Packaging Details : wooden box packing

Name : SMT Conveyor

Brand name : HXT

Model number : HXT-C1M

Product name : PCB Assembly Conveyor

Maximum board size : 500 * 350mm expandable: 1500 * 450mm (option)

Usage : SMD LED SMT

Application : SMT PCB Assembly Production Line

Machinery test report : Provided

Contact Now

Customized SMEMA normal interface SMT Conveyor PCB Handling Equipment SMT Line Machine PCB Assembly Conveyor PCB 1 metre smt Belt conveyor 0.5m/0.6m/0.8m1m/1.2m/1.5m metre

Description

SMT (Surface Mount Technology) Belt Conveyors are an integral part of modern PCB assembly lines, designed to transport printed circuit boards (PCBs) between different stages of the production process. These conveyors ensure smooth, reliable, and efficient material handling, enabling seamless integration with other SMT equipment such as solder paste printers, pick-and-place machines, and reflow ovens.

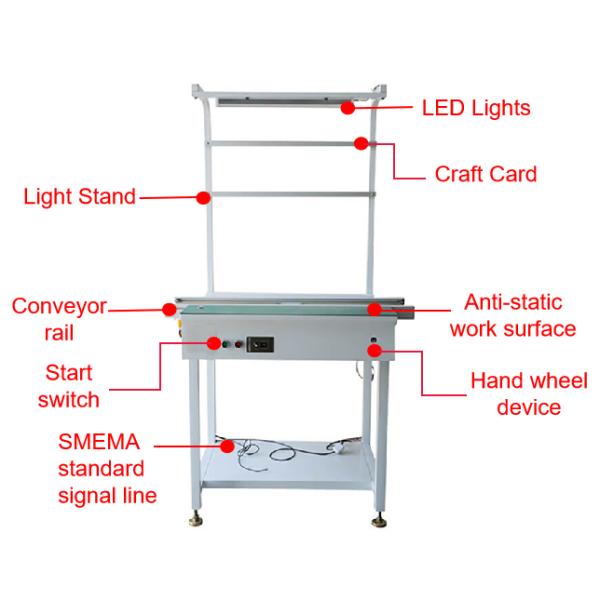

SMT Conveyor Fetures

Use high precision ball screw to ensure the adjustment is narrow and stable.
Adopt professional wear-resistant and anti-static flat belt, and specially made 3.0 MM thick aluminum profile track to ensure smooth connection and stable transportation.
Standard signal line connected online with other equipment.
According to customer requirements, we can produce feeders with different length guide rails.
The working surface is equipped with anti-static rubber to better prevent static electricity.
The transmission motor adopts two 42*48 stepper motors.

Product Specification

Product number	HXT-500	HXT-600	HXT-800
Rail length	500mm	600mm	800mm
Photoelectric switch	2piece		3piece
Widening range	50-350mm
Transmission speed	900±20mm
Transmission speed	1-12m/min
Power supply	AC220V±10%50Hz
Main motor function	75w

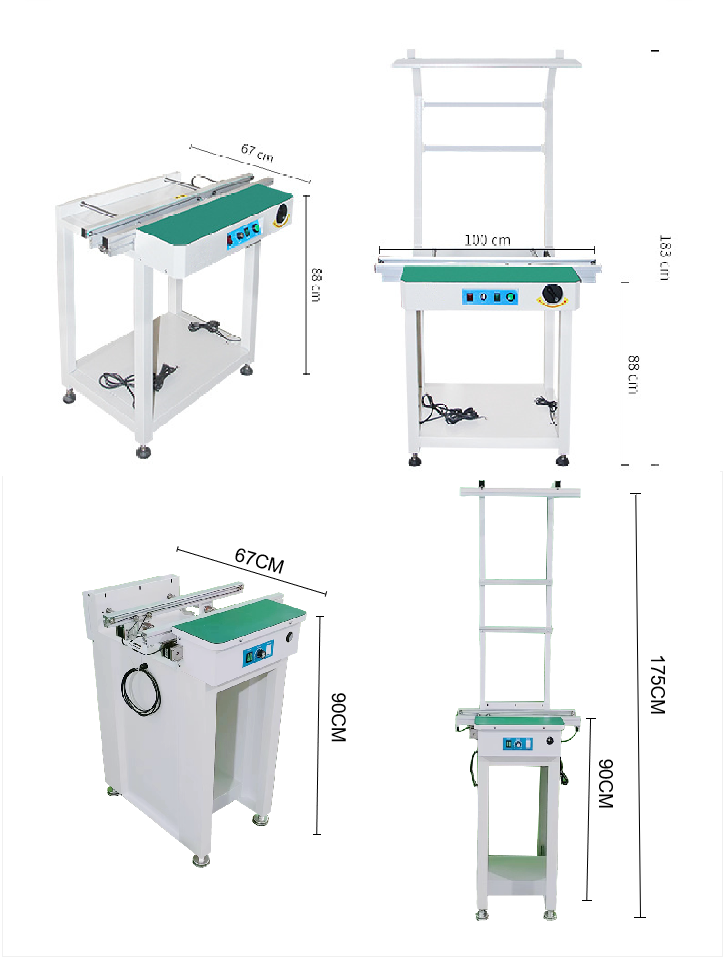

Dimensions	500670900	600670900	800670900
Adaptation	light holder
Product number	HXT-1000	HXT-1200	HXT-1500
Rail length	1000mm	1200mm	1500mm
Photoelectric switch	3piece
Widening range	50-350mm
Transmission speed	900±20mm
Transmission speed	1-12m/min
Power supply	AC220V±10%50Hz
Main motor function	75w
Dimensions	1000670900	1200670900	1500670900
Adaptation	Light Stand

Reliable Efficient Pcb Handling System Rejection System Conveyor High Precision

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
